量程 |

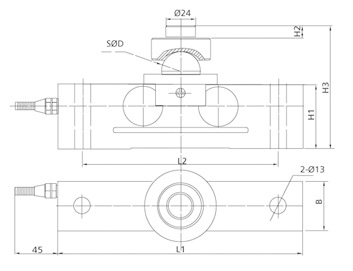

尺寸 |
||||||
|
t |
L1 |
L2 |
B |
H1 |
H2 |
H3 |
D |
|
0.5 |
180.0 |
150.0 |
37.0 |
43.0 |
10.0 |
85.5 |
Φ25.5 |
|
2~3 |
200.0 |
160.0 |
40.0 |
52.0 |
10.0 |
99.8 |
Φ31.8 |
|
主 要 技 術 指 標Main Description |
|||
|
測量范圍Capacity |
0.5、2、3 |
kg |
|
|
輸出靈敏度Rated Output |
2．0±0.010 |
mV/V |
|
|
非線性Linear |
±0.05 |
%F.S |
|
|
滯后Hysteresis |
±0.05
|
%F.S |
|
|
重復性Reapeatability |
±0.02
|
%F.S |
|
|
蠕變Creep
|
±0.03
|
%F.S |
|
|
零點輸出Zero Balance |
≤±1.0
|
%F.S |
|
|
溫度補償范圍 Conpensated Temperature Range |
室溫～+60 |
℃ |
|
|
零點溫度補償系數Temperature Effect On Zero |
±0.05 |
%F.S/10 ℃ |
|
|
額定輸出溫度系數 Temperature Effect On Output
|
±0.05 |
%F.S/10 ℃ |
|
|
供橋電壓 Excitation Voltage |
10V |
AC/DC |
|
|
絕緣電阻Insulation Resistence |
≥2000 |
MΩ/100VDC |
|
|
輸入電阻 Input Resistence |
760±8 |
Ω |
|
|
輸出電阻Output Resistence |
700±2 |
Ω |
|
|
允許過載系數Safe Overload |
120 |
%F.S |
|
|
電纜連接方式Cable Connection
|
信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－) |
||
|
供橋電壓Excitation Voltage： 紅Red: (+) 綠Green： （－） |
|||
