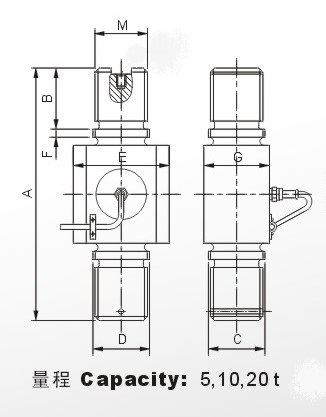

測量范圍Capacity

?輸出靈敏度Rated Output

2.0±0.10

mV/V

?非線性Linear

±0.03

%F.S

?滯后Hysteresis

±0.03

%F.S

?重復(fù)性Reapeatability

±0.01

%F.S

?蠕變Creep

±0.02

%F.S

?零點輸出Zero Balance

≤±1.0

%F.S

?溫度補償范圍 Conpensated Temperature Range

室溫～+60

℃

?零點溫度補償系數(shù)Temperature Effect On Zero

±0.02

%F.S/10 ℃

?額定輸出溫度系數(shù) Temperature Effect On Output

±0.02

%F.S/10 ℃

?供橋電壓 Excitation Voltage

10V

AC/DC

?絕緣電阻Insulation Resistence

≥5000

MΩ/100VDC

?輸入電阻 Input Resistence

385±10

Ω

?輸出電阻Output Resistence

350±2

Ω

?允許過載系數(shù)Safe Overload

120

%F.S

電纜連接方式Cable Connection

信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－)

供橋電壓Excitation Voltage： 紅Red: (+) 綠Green：?（－）
